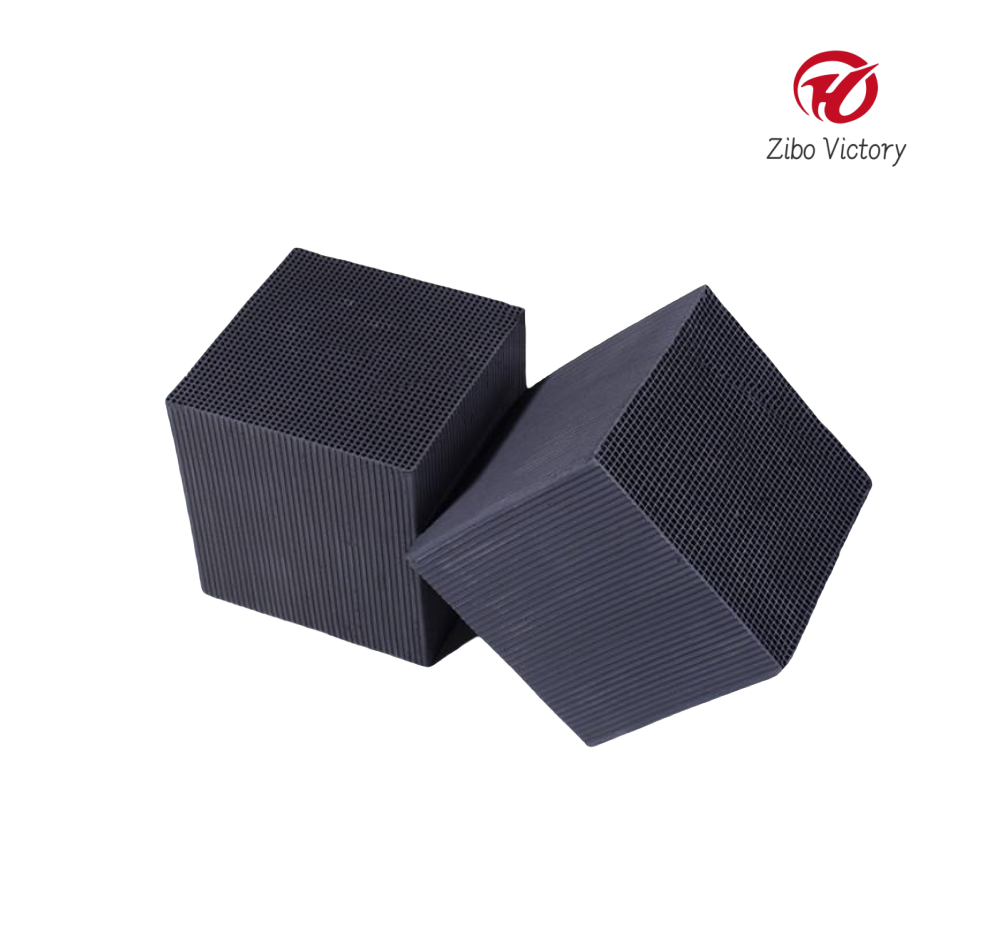

Name:Honeycomb activated carbon for VOCs

Product Description

Honeycomb activated carbon is the use of high-quality raw coal as a raw material to extrude molding, activated by high temperature, the market is very little useful wood as a raw material to use.



The production principle is that raw materials and coal tar, asphalt or other adhesives in accordance with a certain proportion of blending, extrusion molding, according to the size of the grinding tool, can be processed into 100mm*100mm*100mm cuboid or 50mm*50mm*100mm cuboid to make, and then through 800C° high temperature activation.



Honeycomb activated carbon is widely used, mainly used in air treatment, VOC treatment, etc., due to its unique square aperture, so that it is extremely good air mobility in the equipment, and, in the air (waste gas) through the honeycomb carbon layer, only through the square hole of honeycomb activated carbon, the electrostatic attraction of activated carbon will quickly capture all the molecules suitable for its own aperture, So as to achieve the purpose of purification.



Technical parameters of honeycomb activated carbon



Specification

50mm,  100mm

Benzene adsorption value

20-40

Iodine adsorption value

500-800mg/g

Desorption temperature

110C°

Specific surface area

500-900m²/g

Empty tower wind speed

0.8m/s

CTCCarbon tetrachloride

30-40%

Static adsorption rate

30-50%

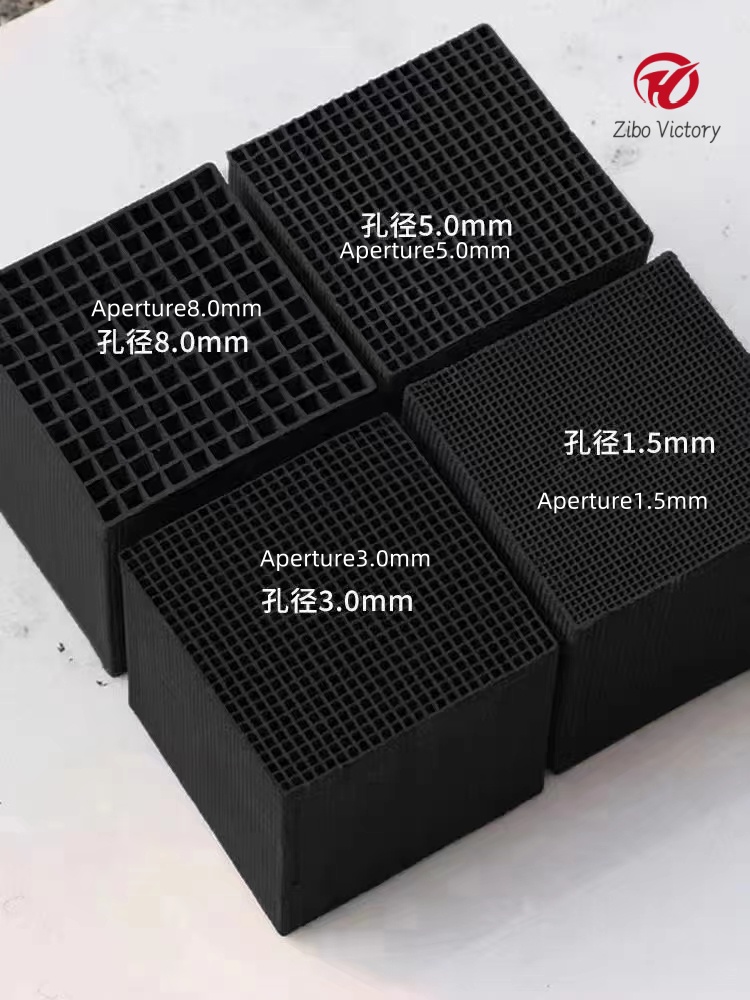

Aperture

1.5mm

Positive compressive strength

1mpa

Bulk density

0.4-0.6g/cm³

Lateral compressive strength

0.7mpa

Moisture

≤5

Wall thickness

1mm

 Honeycomb activated carbon is the use of high-quality raw coal as a raw material to extrude molding, activated by high temperature, the market is very little useful wood as a raw material to use.
