Technical specification

Rare metal catalyst

Precious metal catalyst -200

Precious Metal catalyst -300

Active Components

Sc, La, Ce, Pr, etc

Pt, Pd, Au and other precious metals

Pt, Pd, Au and other precious metals

Service life

1-3 years

1-3 years

1-3 years

Strengths

Multi-metal composite, certain resistance to sulfur and chlorine, low cost, widely used

Precious metal components, high efficiency, low conversion temperature, low operating costs

Precious metal components, high efficiency, low conversion temperature, low operating costs

appearance

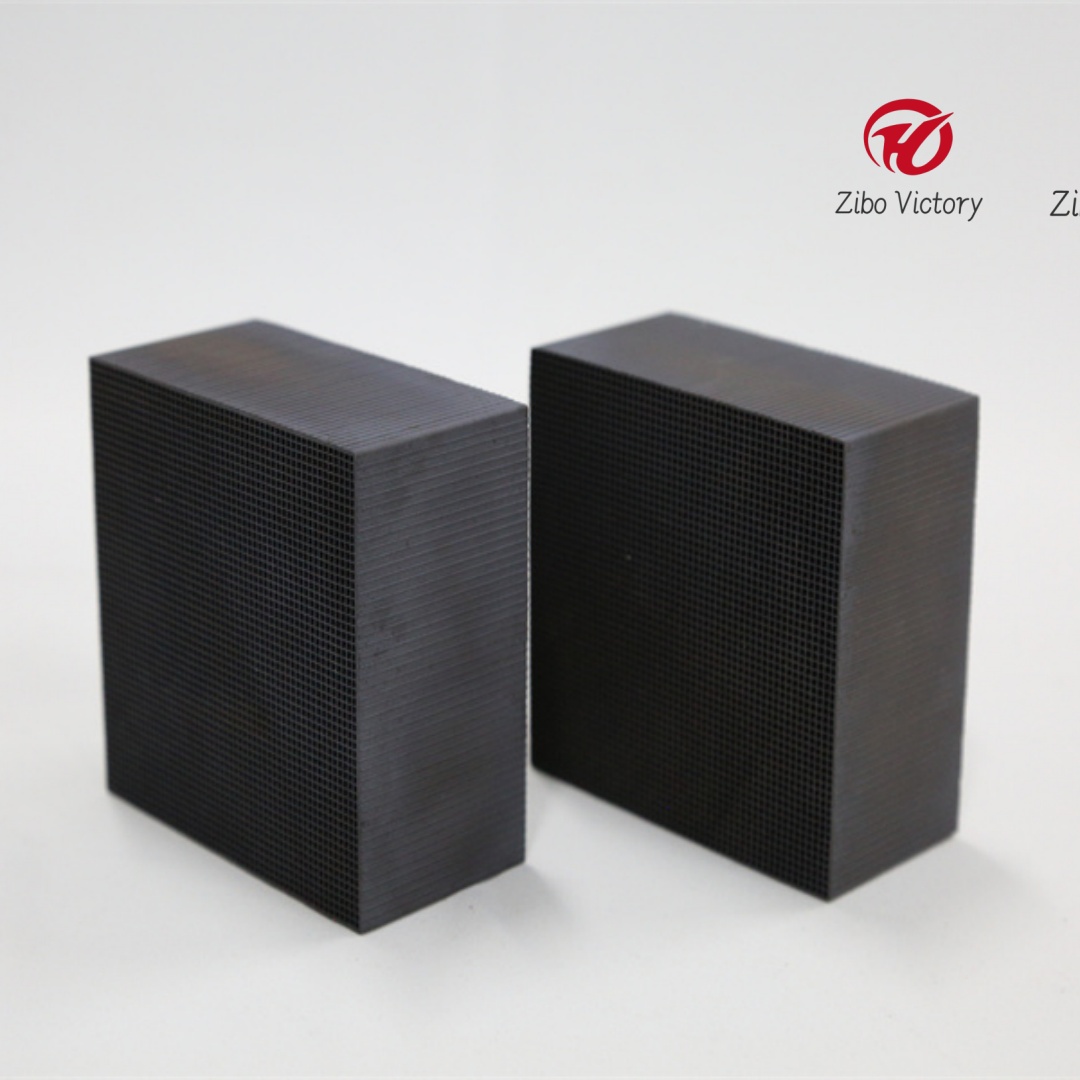

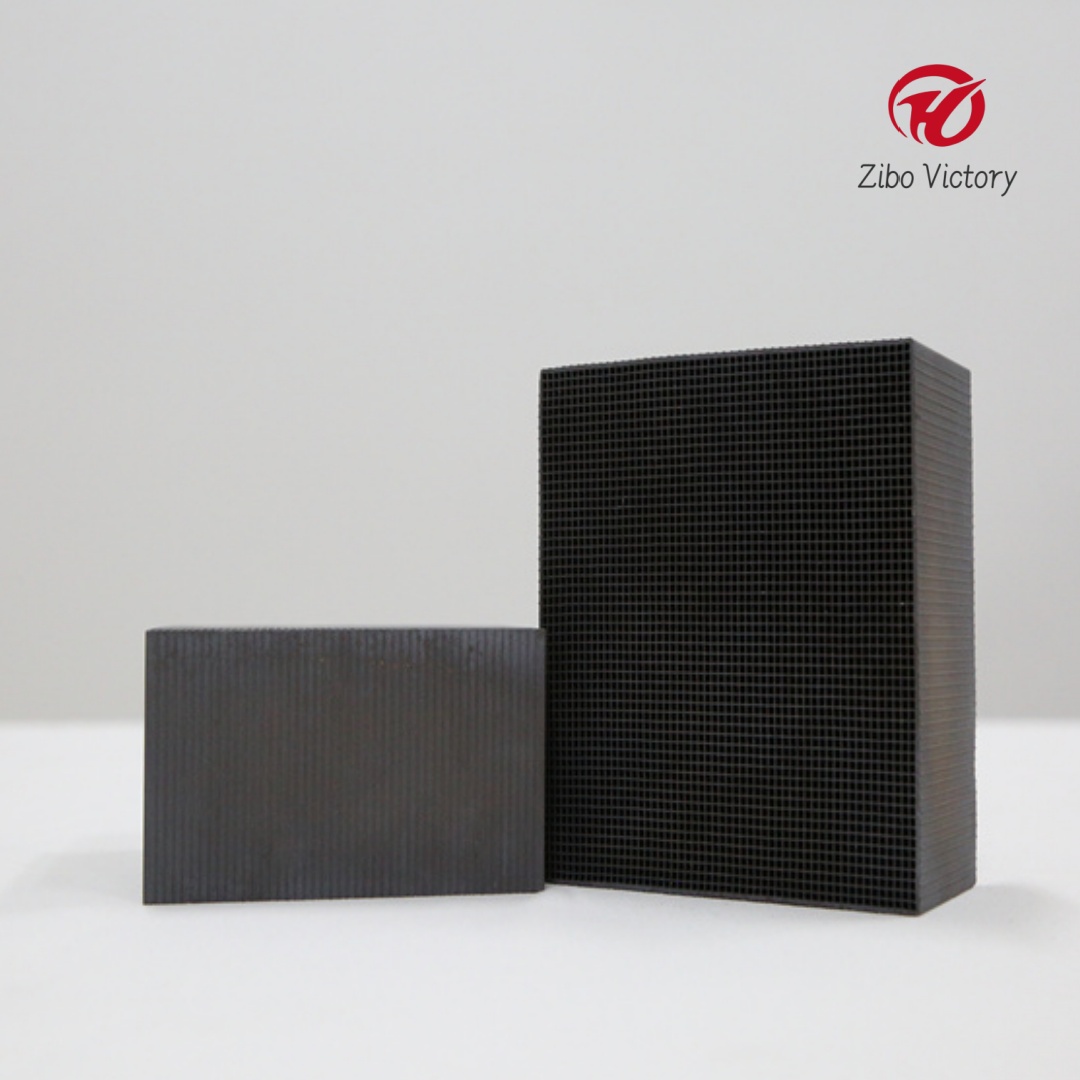

Square honeycomb, dark black

Square honeycomb, light yellow

Square Honeycomb, pale yellow

Carrier

Honeycomb ceramics

Honeycomb ceramics

Honeycomb ceramics

Pass and density

Square hole, 200 CPSI

Square hole, 200 CPSI

Square hole, 200 CPSI

Length, width and height

100 x 100 x 50 (mm)

100* 100*50 (mm)

100* 100*50 (mm)

Wall thickness

0.5mm

0.5mm

0.5mm

Outer wall thickness

1.5mm

1.5mm

1.5mm

Single piece quality

290±10 g

280±10 g

280±10 g

Single block volume

0.5L

0.5L

0.5L

Packing density

560-600 kg/m3

540-580 kg/m3

540-580 kg/m3

Catalytic efficiency

> 96%

> 97%

> 98%

Operating temperature

250-400 ° C

250-400 ° C

250-400 ° C

Conversion temperature

330-350 ° C

260-300 ℃

260-300 ℃

Instantaneous impactresistance to high temperatures

700 ° C

700 ° C

700 ° C

Airspeed

8000h- 1- 10000h- 1

8000h- 1- 12000h- 1

10000h- 1- 15000h- 1

Specific Heat Capacity

850- 1000 J/Kg ·K

850- 1000 J/Kg ·K

850- 1000 J/Kg ·K

Compressive strength

A-axis > 18MPa

Axis B > 4MPa

Axis A > 18MPa

B axis > 4MPa

Axis A > 18MPa

Axis B > 4MPa
