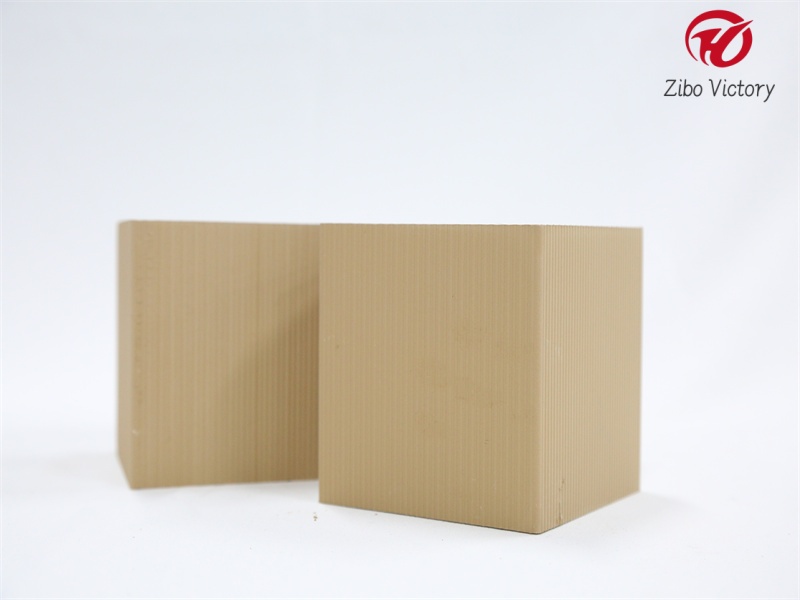

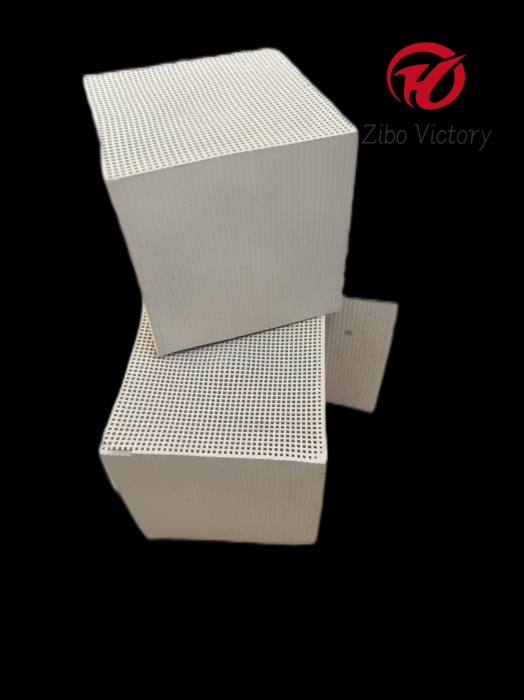

| Name: | Honeycomb Zeolite in Catalytic Converter |
|---|---|
Product Description
Honeycomb zeolite with a variety of molecular sieve balanced with adsorption components, the use of extrusion preparation process, so that the effective components evenly dispersed in honeycomb zeolite, adding porous materials effectively expand the organic gas and VOCs gas contact area, improve the adsorption effect of honeycomb zeolite.
Specifications sheet
Honeycomb Zeolite Specifications and Performance Parameters Table |
||||
index |
parameter |
|||
Specification parameter |
Appearance color |
Light yellow or brown |
||
Hole specification |
quadrate 40×40 |
|||
length |
100±2mm |
|||
width |
100±2 mm |
|||
height |
100±2 mm |
|||
pitch |
1.5-1.8mm |
|||
Inner wall thickness |
0.5 mm |
|||
Outer wall thickness |
1.5 mm |
|||
Block volume |
1 L |
|||
Specific gravity |
|
430±20Kg/m³ |
||
Macroscopic surface area |
1150m²/m³ |
|||
Performance parameter
|
Design adsorption temperature |
30 ℃ |
||
Maximum adsorption temperature allowed |
50 ℃ |
|||
Allowable minimum adsorption temperature |
unlimited |
|||
Desorption temperature |
150-500 ℃ |
|||
Design service humidity |
65 % |
|||
Maximum permissible humidity |
80 % |
|||
Minimum allowable service humidity |
unlimited |
|||
Honeycomb zeolite wind resistance |
＜0.04 Kpa/layer |
|||
Compressive strength |
Orientation of hole |
≥3 MPa |
||
Radial direction |
≥1MPa |
|||
Zeolite type |
Target time |
Recommended concentration |
||
C4 |
≥360min |
200mg-300mg |
||
